XF Series Horizontal Fluidizing Dryer
Capacity: 10-80Kg/h, customized
Fluidizing dryer is also called fluid bed. Through operation and improvement over 30 years, it has play an active part in the fields of pharmaceutical, chemical, foodstuff, gain and so on industries. It consists of air filter, fluid bed, cyclone separator, dust collector, high-speed centrifugal fan, control cabinet and so on. Because of the difference of property from raw material, it is necessary to equip dust remover in accordance with practical needs. It may select cyclone separator and dust collector both or one of them. In general, cyclone separator can be selected if the raw material is larger and the dust collector may be selected if the raw material is light. Moreover, there is pneumatic feeding device for your selection.
2.Principle
The clean and hot air enters into fluid bed through distributor of valve plate. The wet material is fed from the feeder forms the fluid state by hot air. Because of the wide contact between hot air and raw materials, the time of drying is short. The air enters from the front of bed, fluidized in bed for several minutes, and float another side of bed. The machine' works in negative pressure.
Applications
drying process of medicines, chemical raw material, foodstuff, grain processing, feed and so on. For example, raw medicine, tablet, Chinese medicine, foodstuff of health protection, drinks, feed, resin, citric acid and other powders. The suitable diameter of raw material is normally 0.1-0.6mm. The most applicable diameter of raw material will be 0.5-3mm.
Technical Parameter
| Item Model | Drying capacity (kg/h) | Power of fan (kw) | Air Pressure (pa) | Air amount (m³/H) | Temp. of inlet air (ºC) | Max. consume (J) | Form of feeding |
| XF10 | 10-15 | 7.5 | 5.5x103 | 1500 | 60-200 | 2.0-108 | 1. Shape vlave 2. Pneumatic conveying |
| XF20 | 20-25 | 11 | 5.8x103 | 2000 | 60-200 | 2.6-108 | |
| XF30 | 30-40 | 15 | 7.1x103 | 3850 | 60-200 | 5.2-108 | |
| XF50 | 50-80 | 30 | 8.5x103 | 7000 | 60-200 | 1.04-109 |
More details

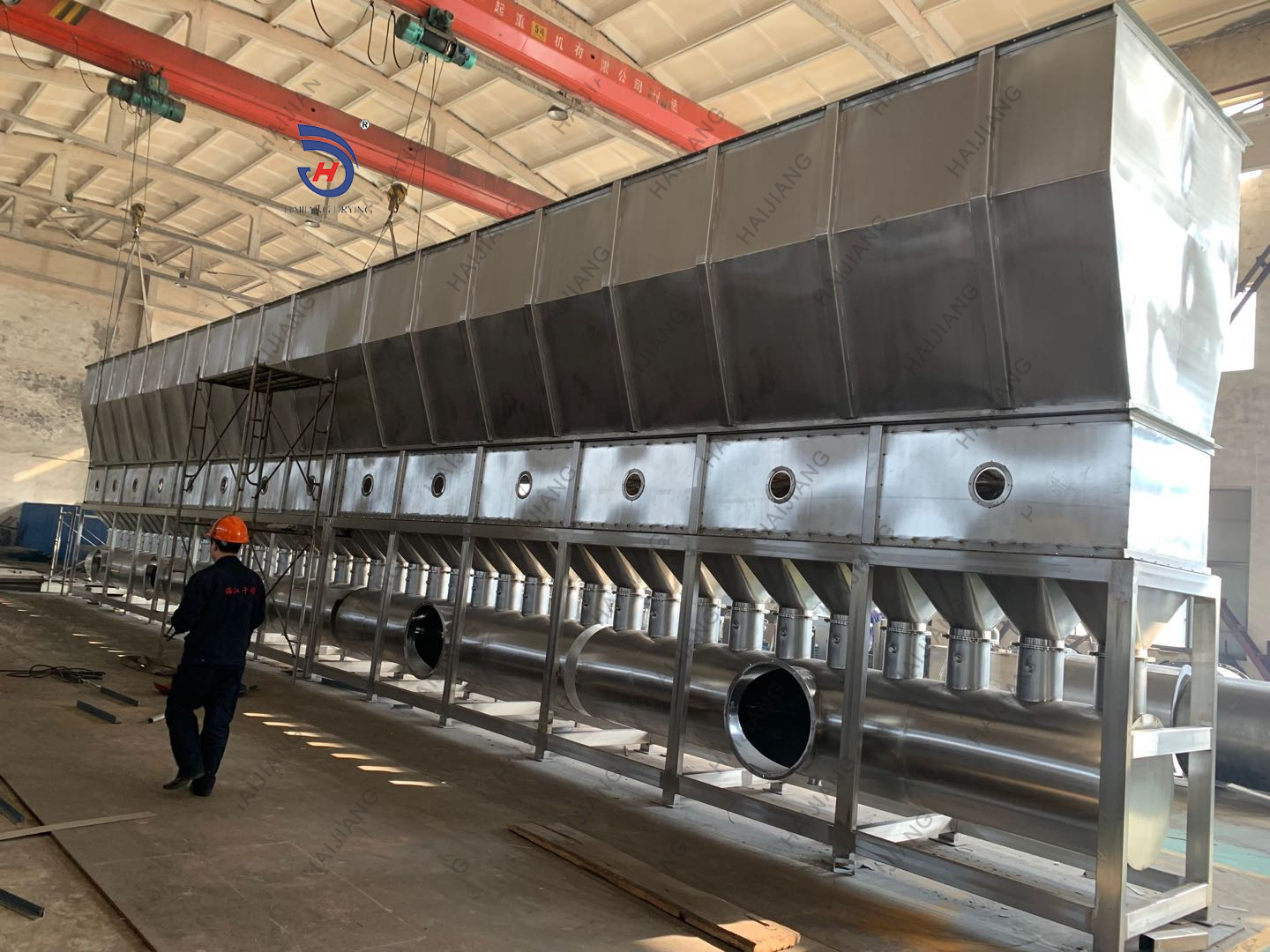

1. Finished Goods
2. Parts
3. Application Site
